SR100NM

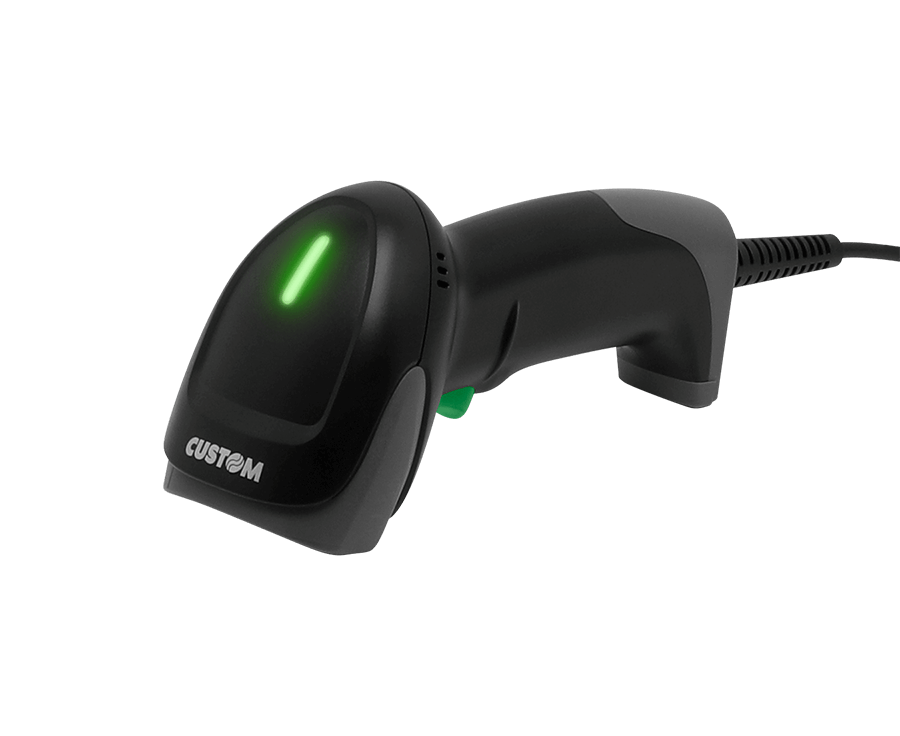

SR200NM

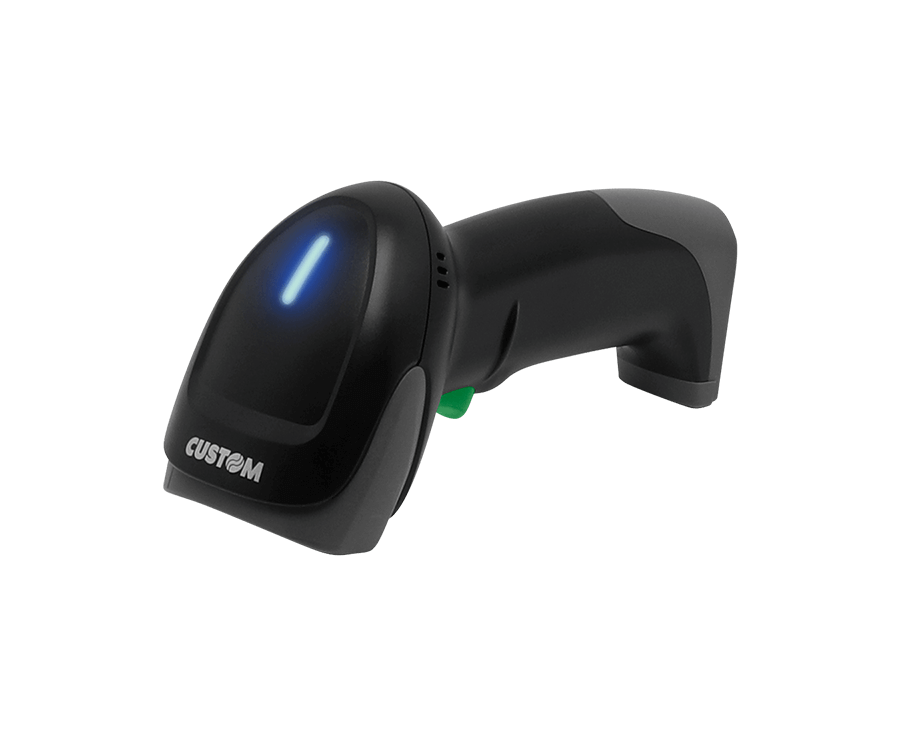

SR300NM

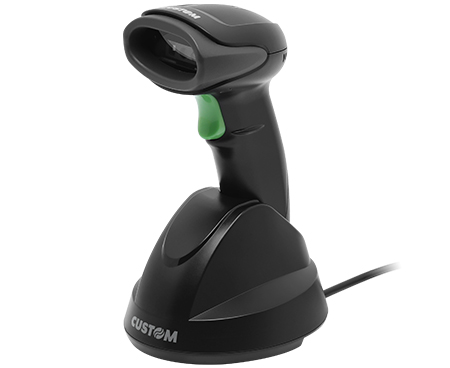

SR300NM-CR

Barcodes supported:

1D

1D/ 2D

Interface:

HID USB / USB COM

Type:

Corded

Wireless

1D Barcodes supported:

All UPC/EAN/JAN, EAN 128 code, Code 39, Code 39 full ASCII, Code 32/Italian Phamacy, Code 128, CODABAR/NW 7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBAR, GS1 Stacked codes

2D Barcodes supported:

-

PDF417, DataMatrix, QR Code

RF Standard:

-

-

BT 4.0

Working distance:

-

-

90 m (open environment)

Optical sensor:

2500 px

648 (V) x 488 (V) px

Light source:

RED LED (660 nm)

Aiming 610 nm red LED + white illumination LED

Resolution:

4 mil

5 mil

4 mil

Scan rate:

100 scans/sec

60 fps

Depth of field:

10-390 mm

60 - 250 mm (13 mil)

74-203 mm (13 mil)

Indicator:

Beeper and LED

Operating temperature:

0 °C to 40 °C

Drop:

1.5 m drops

IP Code:

IP3X

Battery type:

-

Lithium-ion 3.7 V

Battery capacity:

-

2.600 mAh good for 50.000 scans per charge

Cradle:

-

-

-

✔

Box contents:

Device, USB-RJ45 cable, user manual, warranty card

Warranty:

60 meseci
