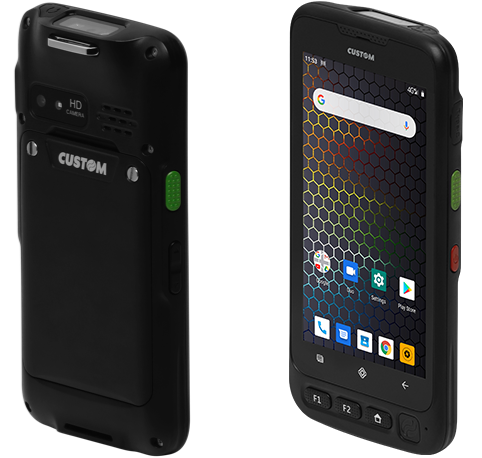

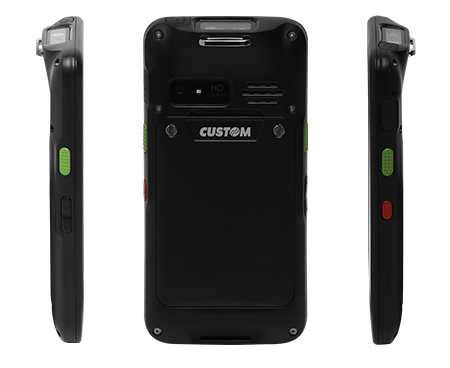

P-RANGER

Mobile Computer


With the handheld computers of P-RANGER family you can improve the touch computing performances of prosumer category. The management of P-RANGER is easy and fast thanks to Android™ (available with operating systems 7, 9 and 10), that offer a new intuitive platform guaranteeing to the user an extraordinary experience. All the business features of P-RANGER improve the abilities of the employees, maximizing the productivity and reducing the time of the operative cycles. Moreover, the devices are reinforced with LTE data module both for close and open environments. Choose P-RANGER to offer an advanced and cost-effective service to your customers!


SOTI MobiControl

SOTI MobileControl certified

SOTI MobiControl is a mobility management solution that ensures physical asset tracking, application and content management, as well as device and data protection, all through a single, easy-to-use interface.


TECHNICAL SHEET



RP 100

RP 340

RP 310

RP 310 A10

Waterproof:

IP67 standard

Shockproof

RUGGED MIL-STD-810G CERTIFIED

OS:

ANDROID™ 7

ANDROID™ 9

ANDROID™ 10

2D Scanner

-

✔ ‌ Yes ScanEngine SE4710 - 1D/2D Barcode

✔ ScanEngine SE4710 - 1D/2D Barcode

✔ ScanEngine SE4710 - 1D/2D Barcode

Fingerprint

-

✔ up to 5 fingerprint

-

-

Box contents:

Terminal, hand strap, 4000 mAh battery, warranty card, user manual

Camera:

Rear 8 Mpx

Display:

5" 1280×720 HD DRAGONTRAIL/AGC

CPU:

MTK6753 64Bit/8Core ARM Cortex-A53 1.5 GHz

MTK6762 64Bit 8Core ARM Cortex-A53 2.0 GHz

Storage ROM+RAM:

16 GB + 2 GB

NFC

Integrated

GSM

B5/850; B8/900; B3/1800; B2/1900;

3G WCDMA

B1/2100; B2/1900; B5/850; B8/900; CDNA2000 / EVDO 3G:TD / SCDMA

4G LTE:

FDD = B1 / 2100; B3 / 1800; B7 / 2600; B20 / 800;

TDD-LTE = B38 / B39 / B40 / B41

SIM Card:

2 Nano Sim (1st 2G/3G/4G (LTE Europe) - 2nd 2G/3G)

Wi-Fi/Navigation

2.4/5 GHz - Integrated IEEE 802.11 a/b/g/n

Bluetooth:

4.0

1D/2D Scanner:

UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, PDF417, MicroPDF 417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, Maxi Code, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal, etc.

Sensors:

3D accelerator, E-compass, proximity sensor, light sensor supported

Battery:

4000 mAh (optional 8000mAh)

USB ports:

Type-C

T-FLASH:

SD up to 32GB

Operating temperature:

-10° C to 40°C

Storage temperature:

-20° C to 60°C

Drop resistance:

122 cm

Weight (Without battery):

177 gr

189 gr

189gr

186gr

Dimensions:

1165 mm (W) × 76 mm (H) × 15,6 mm (D)

Warranty:

24 months
